Wires & Connectors Catalog
Need Help? How to determine the size of your wires…
| SKU | Product Name | Price | Buy Now | |
|---|---|---|---|---|
 | LOW-PROFILE-WIRE | Adapter Wire for Low Profile Can | (varies) | Buy Now |
 | SUBMIN-F | Female Subminiature Connector The Female Subminiature Connector is manufactured from Type-T (copper-constantan) thermocouple materials. | $15.00 / each | Buy Now |
 | C7 | Female Thermocouple Connector | $45.00 / each | Buy Now |
 | HP-WIRE | Heat Penetration Lead Wires | (varies) | Buy Now |
 | SUBMIN-M | Male Subminiature Connector | $15.00 / each | Buy Now |
 | C10 / C6 | Male Thermocouple Connector | $45.00 / each | Buy Now |
 | SMLFC | Surface Mount Connector with Wire Surface Mount connector installed on wire for use in Steritort Hub or connection panel for heat penetration wires. | (varies) | Buy Now |
 | TD-WIRE | Temperature Distribution / Free Lead Wires | (varies) | Buy Now |
 | C6-I, C7-I, C10-I | Thermocouple Connector Insert | $35.00 / each | Buy Now |
 | TEF-20 / TEF-22-S | Wire (By The Foot) | $2.50 / foot | Buy Now |
Wire Types

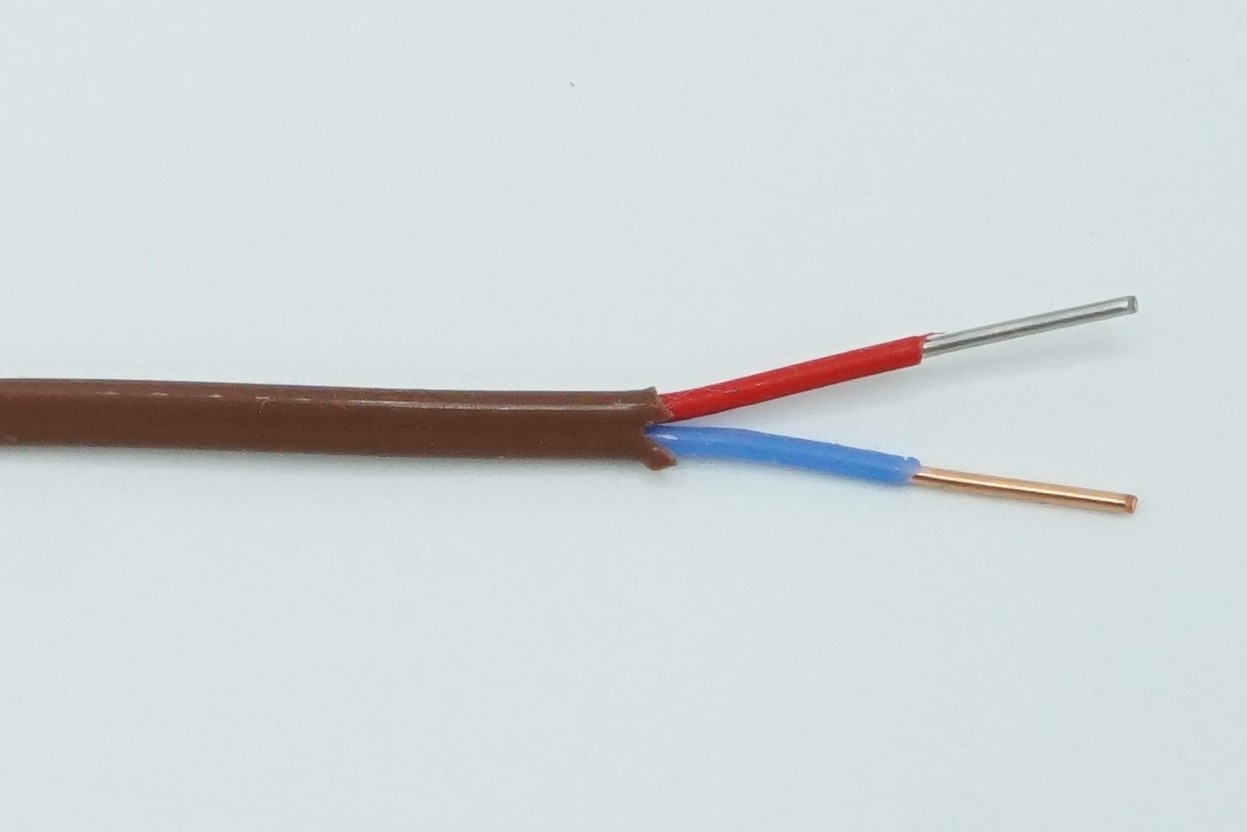

(#TEF-20) Two Solid wires, copper constantan Type, each is 20 gauge, Brown colored Teflon overwrap protects the wires.

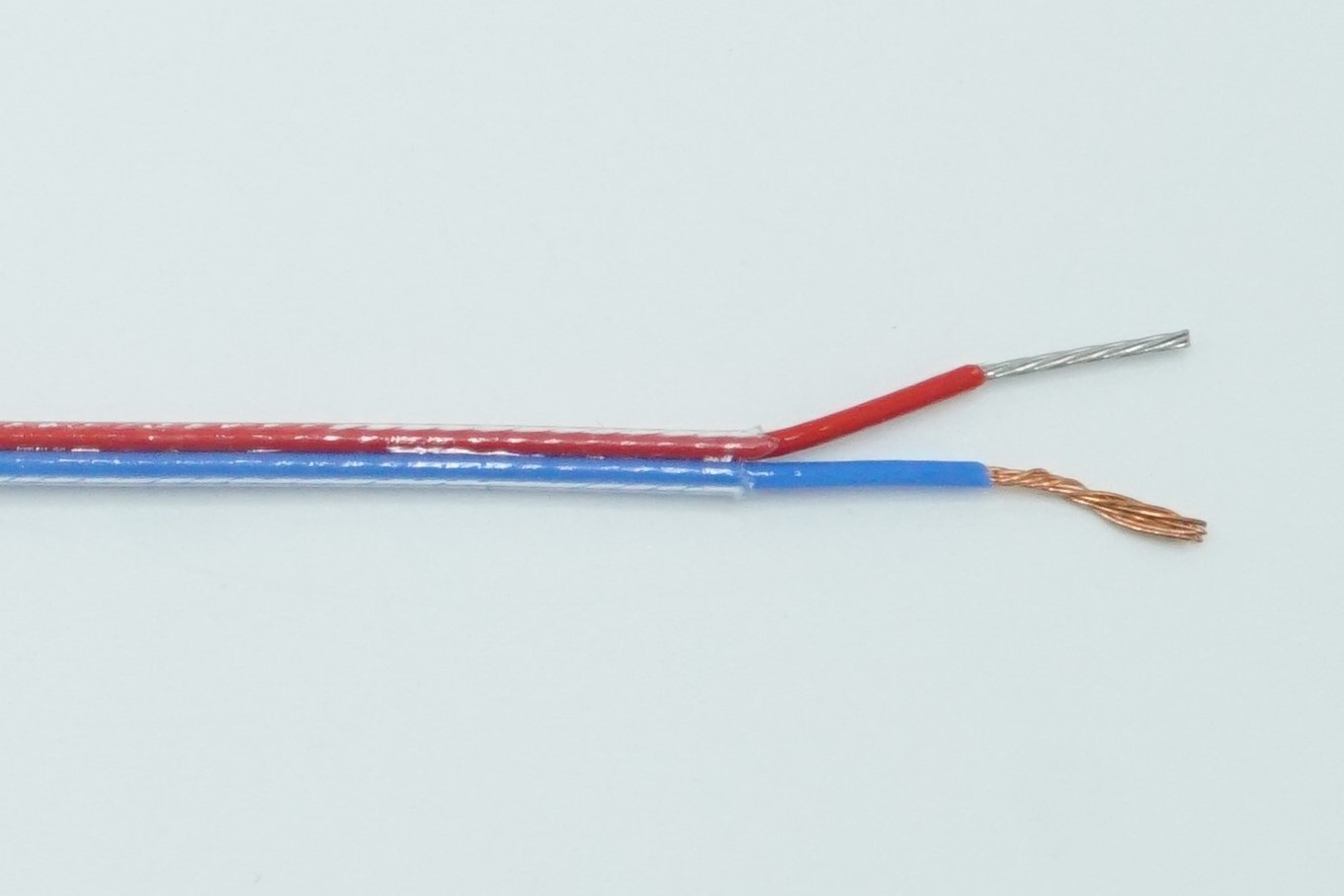

(#TEF-22-S) Two Stranded wires, copper constantan Type, each is 22 gauge, Clear Teflon overwrap protects the wires.

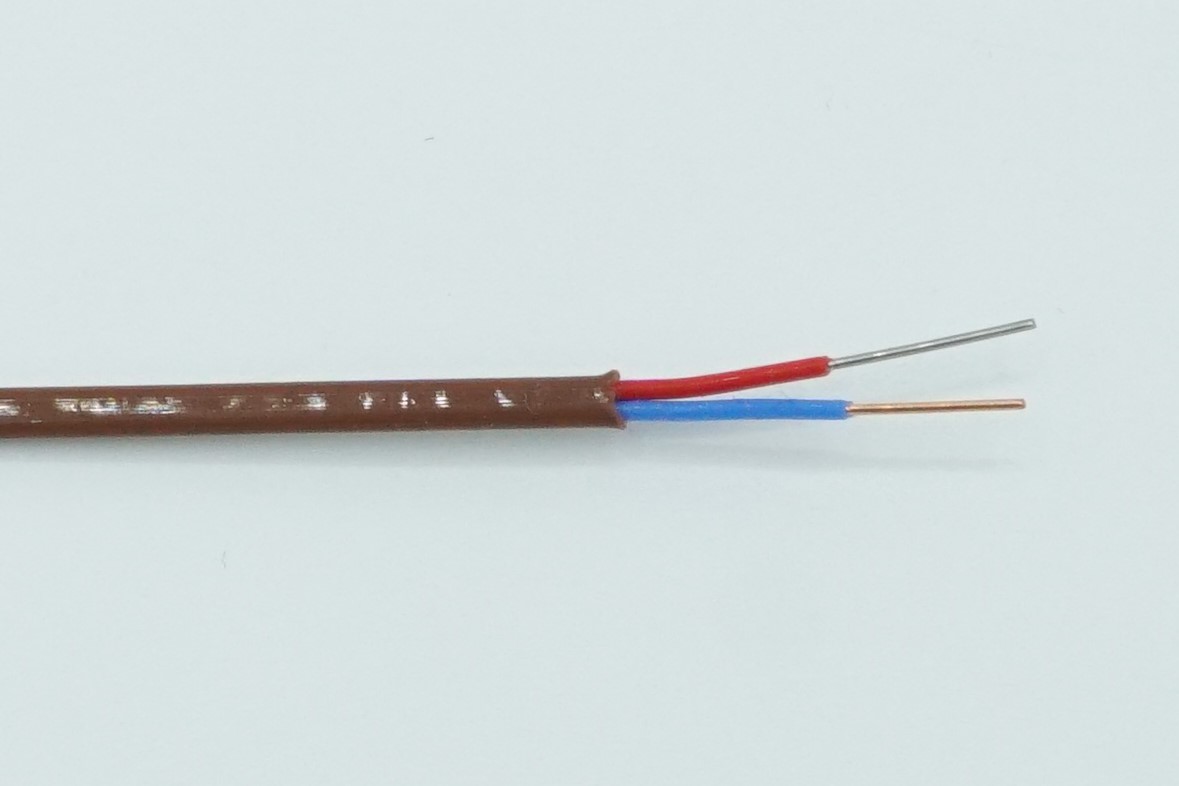

(#TEF-24) Two Solid wires, copper constantan Type, each is 24 gauge, Brown Teflon overwrap protects the wires.
Connectors

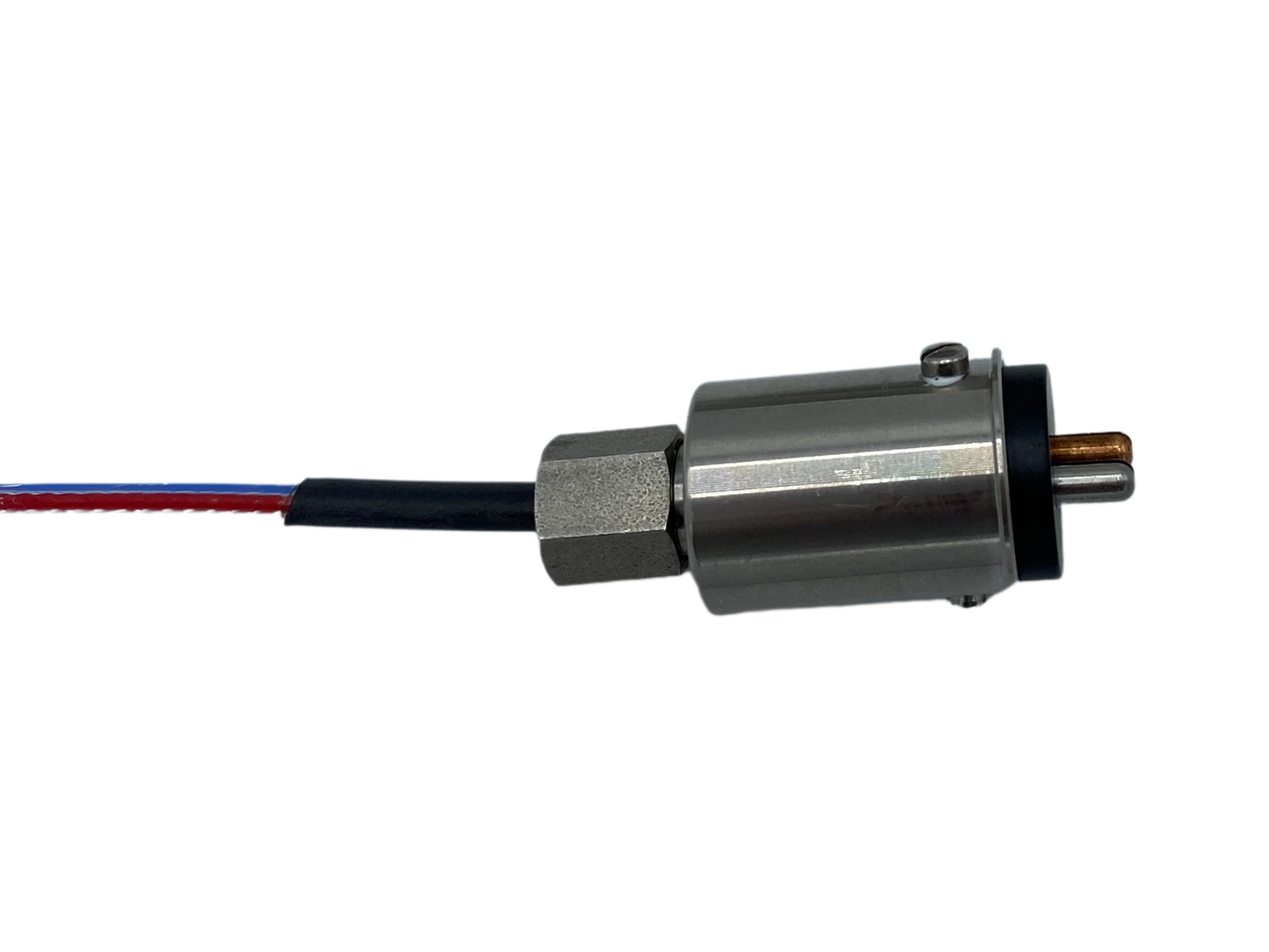

Connector has two male plugs (one copper and one constantan) that plug into a thermocouple installed into a container.

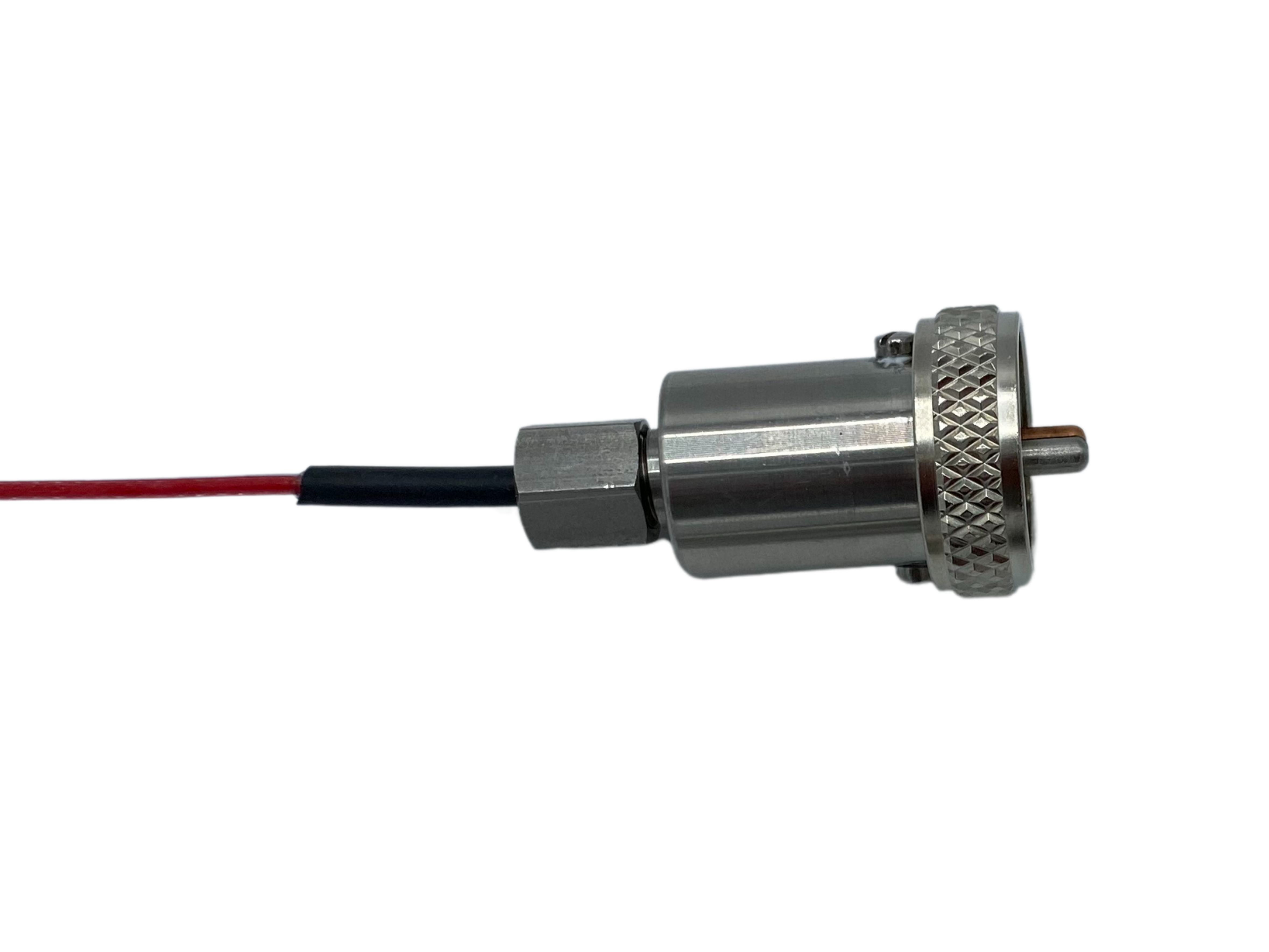

Connector has two male plugs (one copper and one constantan) that plug into a thermocouple installed into a container. Locking ring attaches securely to receptacle.

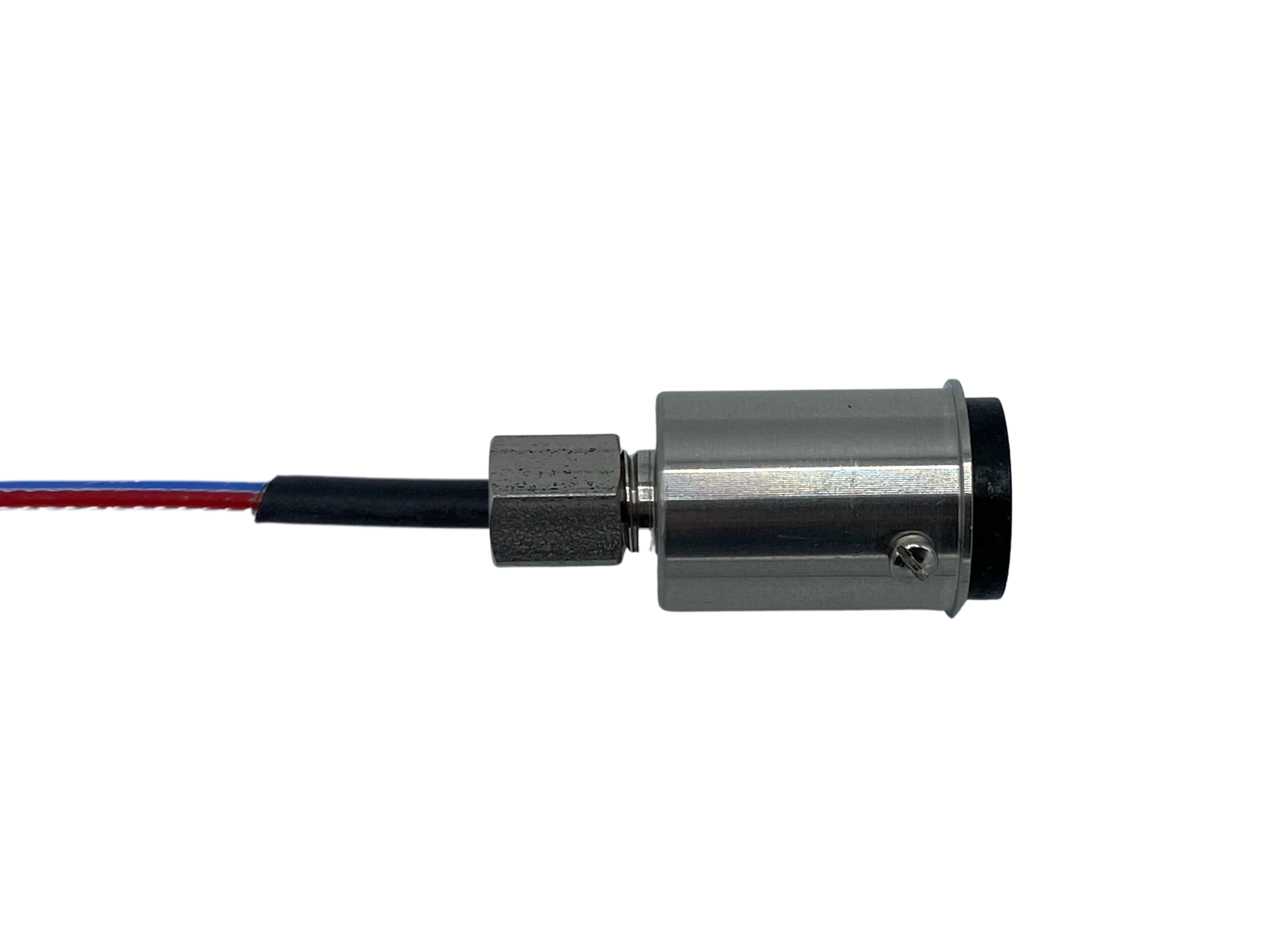

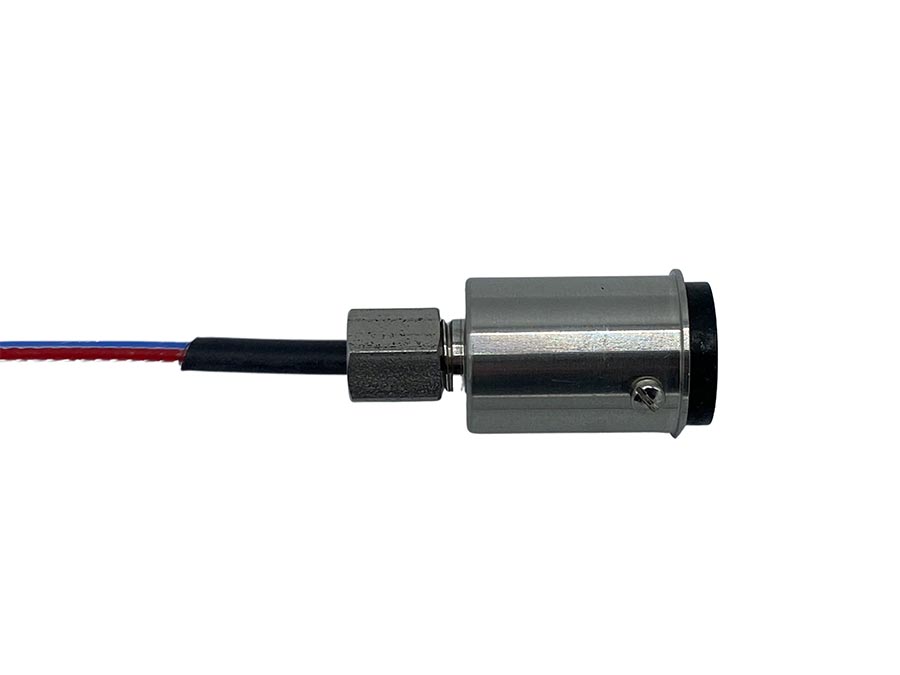

Connector has two Female outlets (one copper and one constantan) that plug into Male thermocouple connector.

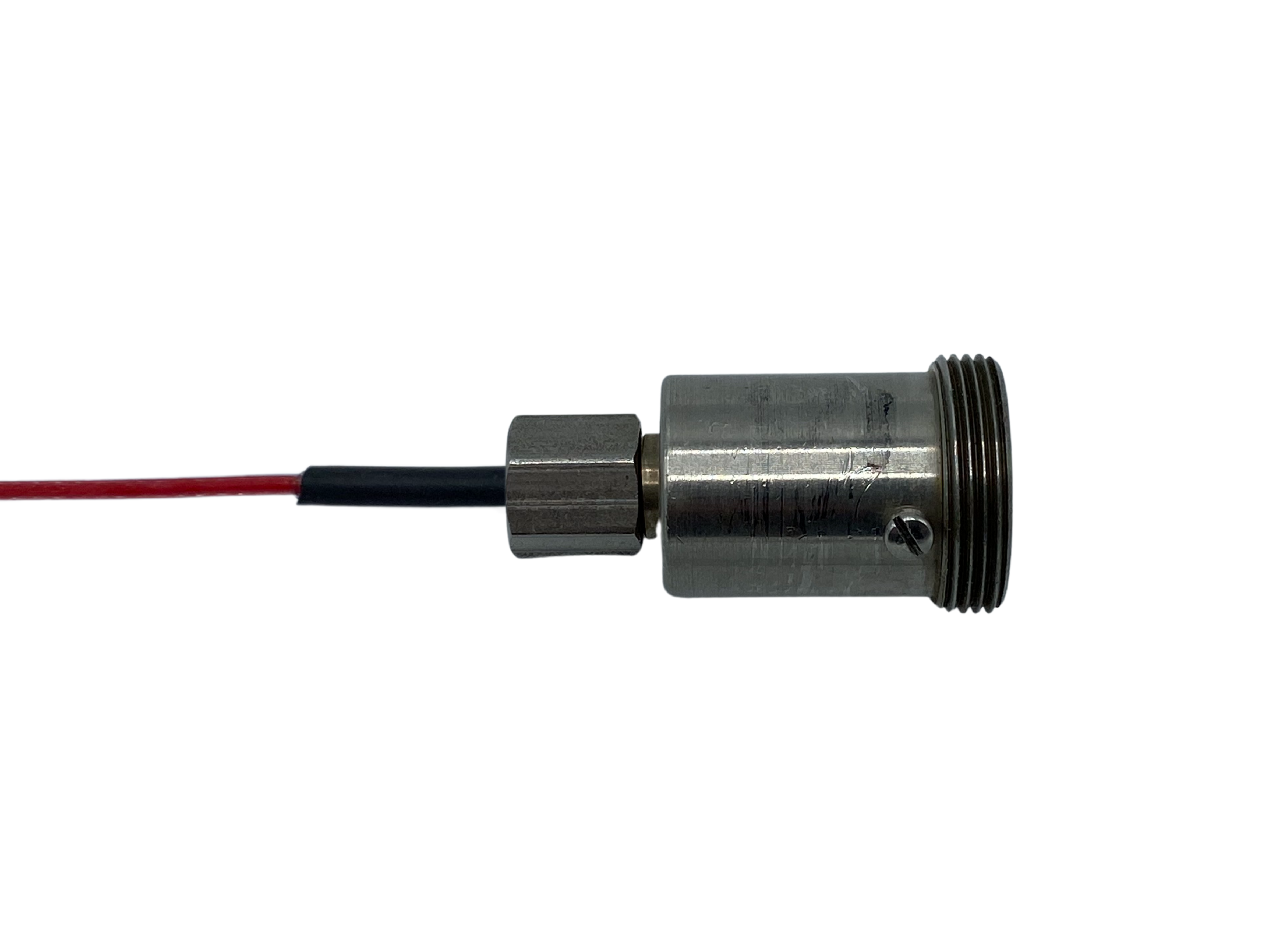

Connector has two Female outlets (one copper and one constantan). Threaded End allows for connection to Locking Male thermocouple Connector.

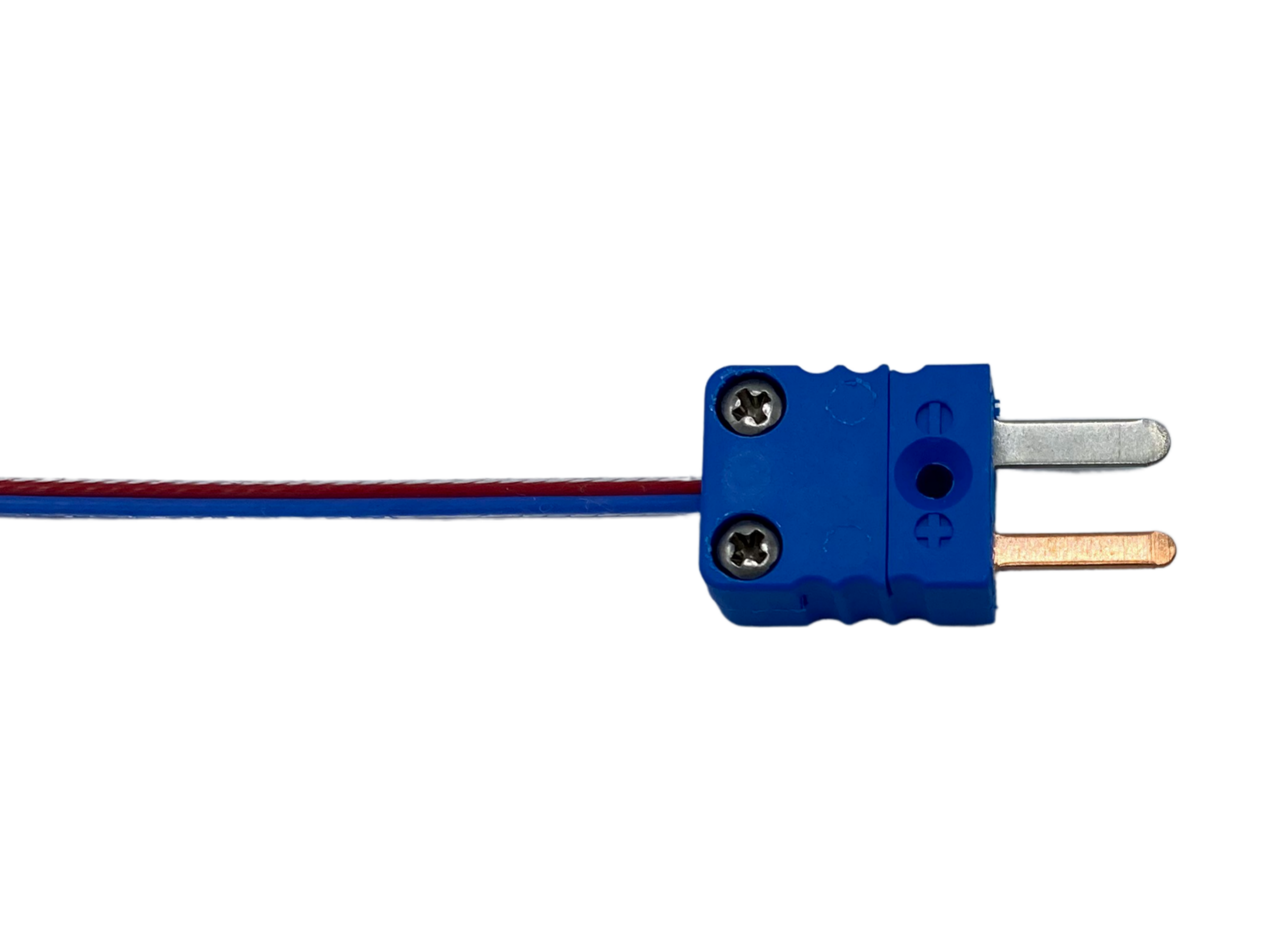

Connector has two Male plugs (one copper and one constantan) that plug into a Female Subminiature connector, or into the CALPlex Datalogger

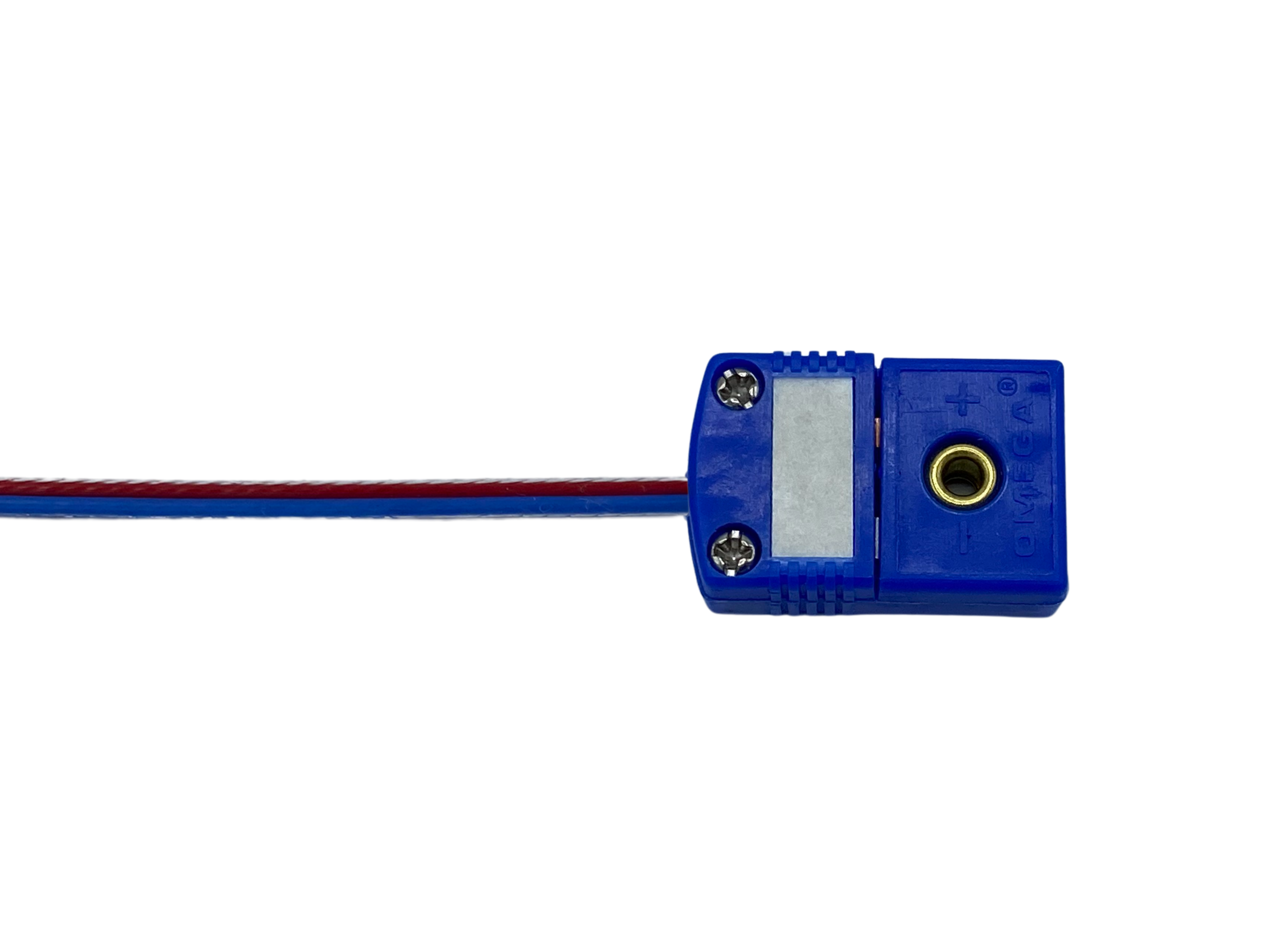

Connector has two Female outlets (one copper and one constantan) that plug into a Male Subminiature connector.
